Dhayal Tech offers various charger configurations like Float-cum-Boost Charger with dropper diodes, Dual Redundant Systems, Float & Float Cum Boost Charger, Dual Float-Cum-Float Boost Charger System and Multiple charger system with redundant (standby) charger etc...
However, needs of proper battery charging are always kept in mind to get the best state of charge and life of the battery bank used.
We do design, assemble, manufacture and supply of varies types of battery packs and battery chargers as per the specifications and customer requirements. The ranges includes from any voltage and any currents ratings with varies technologies.

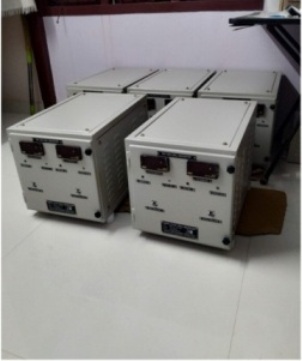

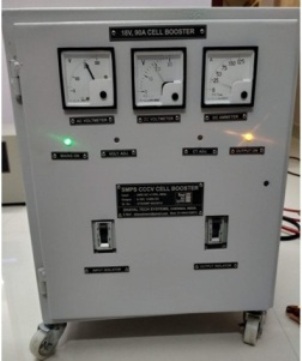

A single weak cell in a battery bank, can lead to failure of total systems resulting in major shutdown. Normally it is very difficult to determine the health/State of Charge of individual cell in a battery bank and also it is not possible with the existing equipment to charge such cells without disturbing / disconnecting the system.
| INPUT | |
|---|---|
| I/P | 230V AC +/-20% AC, 1-Ph, 50Hz |
| Fuse Protection | Yes |
| I/P MOV | Yes |
| Soft Start | Yes |
| OUTPUT | |
|---|---|
| Voltage Range | 0-30V |
| Rated Current | 0-50A |
| Line & Load Regulation | +/- 1% |
| Ripple Max | +/- 1% (P-P) {for adj. voltage from 10-100%} |
| Protections | a) Over Load Protection auto recovery type b) Short Circuit protection auto recovery type c) Over Voltage Protection Latching type d) Over Temperature auto recovery type : 80ºC ± 5 degrees |
| Current Limit | Yes |
| GENERAL | |
|---|---|
| Built in Power Factor Correction- 0.99 | |
| Isolation | Input to Output – 2KV Input to Earth – 1.5KV Output to Earth- 500V |
| Potential Free Contact – Alarm contact for output fail | |
| ENVIRONMENTAL | |
|---|---|
| Operating temperature 0 to 500 C. | |
| Humidity | < 95% Rh |
| Enclosure IP 20 Protection | |
| INDICATIONS LED | |
|---|---|
| a) Input OK – Green LED b) Output OK-Green LED |
