We are the specialist for installation, Erection, Service & Maintenance of DC system.
Since 2007
We are the specialist for installation, Erection, Service & Maintenance of DC system.
Since 2007
Dhayal Tech offers various charger configurations like Float-cum-Boost Charger with dropper diodes, Dual Redundant Systems, Float & Float Cum Boost Charger, Dual Float-Cum-Float Boost Charger System and Multiple charger system with redundant (standby) charger etc...
However, needs of proper battery charging are always kept in mind to get the best state of charge and life of the battery bank used.
We do design, assemble, manufacture and supply of varies types of battery packs and battery chargers as per the specifications and customer requirements. The ranges includes from any voltage and any currents ratings with varies technologies.

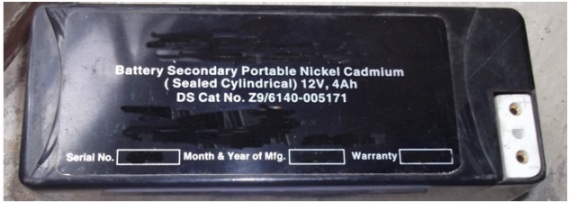

1. Type of Battery : Rechargeable Sealed Nickel - Cadmium Type
2. Battery Dimensions (mm) L: 186.5 # 1.0 W : 70.6 # 1.0 H : 65.0 # 1.0
3. Battery Weight : 1.75 kg (max)
4. Number of cells connected in series parallel combination : 10
5. Type of cells used : Sealed Cylindrical "D" size with insulating sleeves & spot welded intercell connections.
6. Outer casing : Moulded ABS Black Colour Container
7. Type of Termination : Terminated in 2 pole plug (female) for discharging and a three pin socket for charging.
8. Battery Voltage (a) Rated Nominal Voltage : 12V (b) Voltage after charge : 14.5V to 15 V ( C ) End of discharge Voltage : 10V for capacity discharge, 10.8 V for use with Radio set
9. Rated Ah capacity at Room Temperature : 4Ah at 0.8 A rate of discharge upto 10V
